Grade B1 Fire-Resistant composite panel

Grade B1 Fire-Resistant composite panel

ALUWELL®-fr is a fireproof panel consisting of two thin aluminum sheets laminated on both sides of a mineral-filled thermoplastic core material. The aluminum surface has been coil coated before bonding with high-grade resins in various finishes and colors.

Why choose ALUWELL®-fr

Fire safety is important to any construction project, and fire panels are usually required in buildings that exceed the minimum height specified by applicable codes. ALUWELL®-fr is one of the most advanced refractory materials. This economical material offers a variety of attractive options and is one of the most popular exterior fire protection cladding options, which can be seen in many landmark projects around the world.


Use ALUWELL®-fr

ALUWELL®-fr sets the industry standard for fire safety, while providing the same finish options and ease of manufacturing as our standard ALUWELL®-PE panels. Stock ALUWELL®-fr panels are 4 mm thick, 50 inches and 62 inches wide, and 146 inches and 196 inches long. The length and thickness can also be customized. A wide range of stock colors can be delivered immediately, and there are endless possibilities for custom color matching.

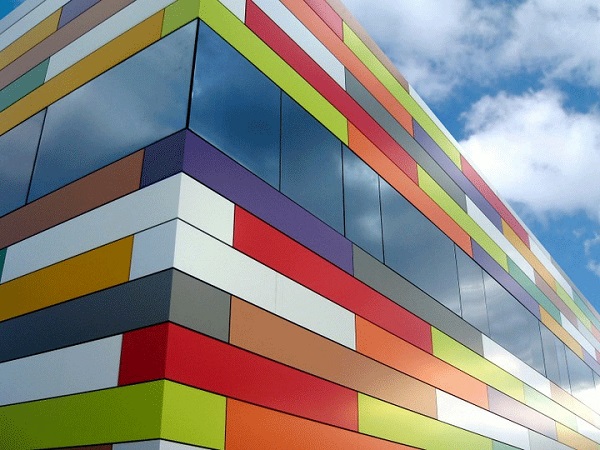

These panels provide the rigidity of heavy metal plates with lightweight materials and are easy to manufacture using ordinary wood and metal processing tools. They are suitable for almost any building fastening system, and are very suitable for curtain wall exteriors, rain curtain systems and other building cladding applications that require the use of fireproof panels. With all the versatility of our classic polyethylene core board, ALUWELL®-fr board has excellent flatness, vibration damping, durability and easy maintenance, which can perfectly realize your architectural vision. Browse our project page for examples and inspirations for using this extraordinary composite material.

  • Excellent fire resistance and flame retardant.

  • Excellent surface flatness and smoothness.

  • Good sound insulation and heat insulation effect.

  • Excellent impact and peel strength.

  • Lightweight and easy to maintain.

Complies with DIN 4102 / ASTM E84-05 / AS 1530.3 / BS 476 Section 6 and Section 7
