Thermal expansion is one of the most important performance considerations in modern aluminum composite panel facades. While ACM panels are widely recognized for their lightweight construction, flatness, and design flexibility, every aluminum-based cladding system experiences thermal movement throughout its service life.
Many façade problems that appear to be product defects are actually related to thermal expansion that was not properly accommodated during design or installation. Oil canning, distorted joints, cracked sealants, stressed fasteners, and localized panel deformation can often be traced back to inadequate expansion allowances rather than panel quality issues.
For architects, façade consultants, contractors, and developers, understanding thermal expansion in aluminum composite panel facades is essential for creating durable architectural cladding systems that maintain both appearance and performance over time.

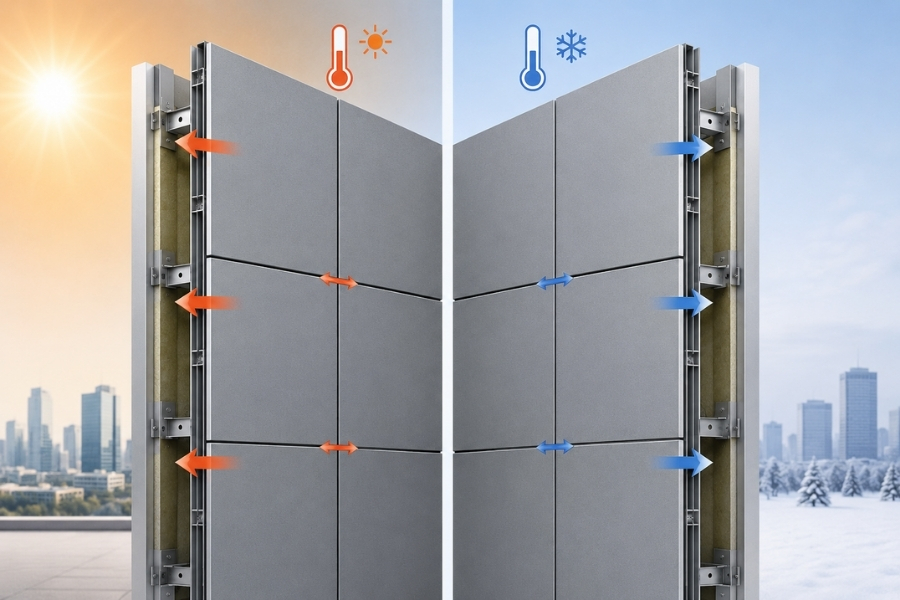

All construction materials expand when heated and contract when temperatures decrease. Aluminum composite panels follow the same physical principle.
An aluminum composite panel consists of two aluminum face sheets bonded to a core material. Because aluminum has a relatively high coefficient of thermal expansion compared with many construction materials, ACM panels experience measurable dimensional changes as temperatures fluctuate.
Exterior building envelopes are exposed to far greater temperature variations than indoor environments. Solar radiation, seasonal weather conditions, façade orientation, and panel color all contribute to changing panel temperatures throughout the day.
A dark-colored aluminum façade panel installed on a west-facing elevation may reach surface temperatures approaching 75°C under direct sunlight, while winter temperatures in colder regions may fall below -30°C. These repeated heating and cooling cycles create continuous thermal movement within the façade system.
Thermal expansion itself is not a problem. Problems occur when architectural cladding systems prevent panels from moving naturally.
The amount of thermal movement depends on panel dimensions and temperature variation.
The thermal expansion coefficient commonly referenced for aluminum composite panel systems is approximately:
4.0\times10^{-5},/,^\circ C
Thermal movement can be estimated using:
\Delta L=\alpha L\Delta T

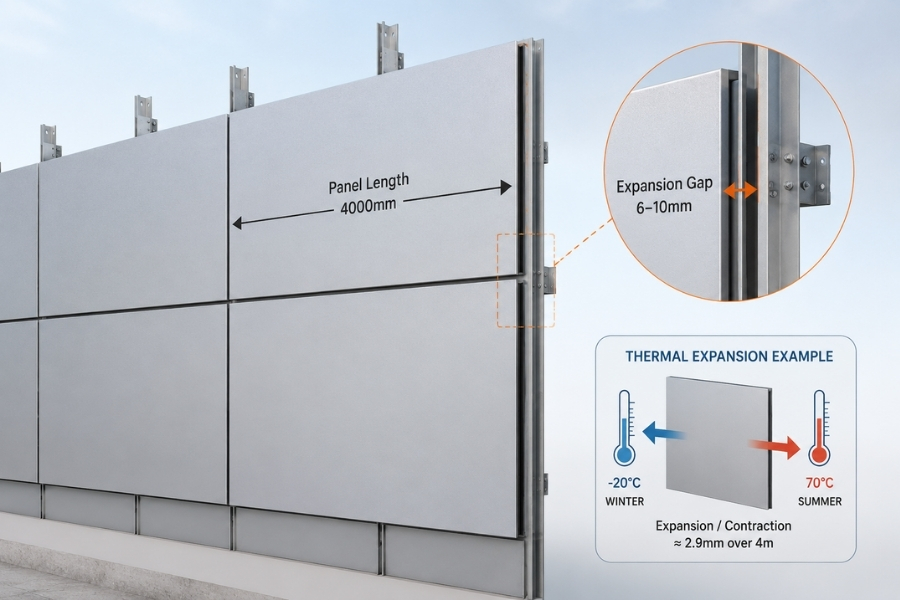

Consider a 4,000 mm aluminum composite panel installed on a commercial façade.
If the panel experiences temperatures ranging from -20°C during winter to 70°C during summer exposure, the temperature differential reaches 90°C. Under these conditions, the panel may move several millimeters over its length.
Although a few millimeters may appear insignificant, thermal movement becomes increasingly important when hundreds of panels are installed across a large façade. Without adequate expansion gaps and façade movement joints, these small dimensional changes can generate significant stress throughout the cladding system.
This is why thermal movement calculations should be considered during the design stage rather than after installation begins.
One of the most common misconceptions in façade projects is the assumption that visible panel movement indicates poor manufacturing quality.
In reality, thermal expansion is a predictable characteristic of all aluminum-based curtain wall systems and architectural cladding systems.
Many façade issues initially reported as panel defects are eventually traced to installation practices or detailing decisions that restrict thermal movement.
Common examples include:
Expansion gaps that are too small
Incorrect fastener placement
Rigid attachment methods
Inadequate façade movement joints
Poor coordination between the panel and subframe
When thermal movement is restrained, stresses accumulate within the panel, attachment system, and surrounding components. Over time, these stresses may become visible as distortion, cracking, or alignment issues.
Successful ACM façade design focuses on accommodating movement rather than attempting to eliminate it.
Oil canning is one of the most discussed visual issues associated with metal facades.
While fabrication tolerances, substrate flatness, and panel geometry all contribute to oil canning, restricted thermal movement can increase internal stresses that make surface waviness more visible.
Large-format aluminum composite panels are particularly sensitive because greater panel lengths generate greater thermal movement.

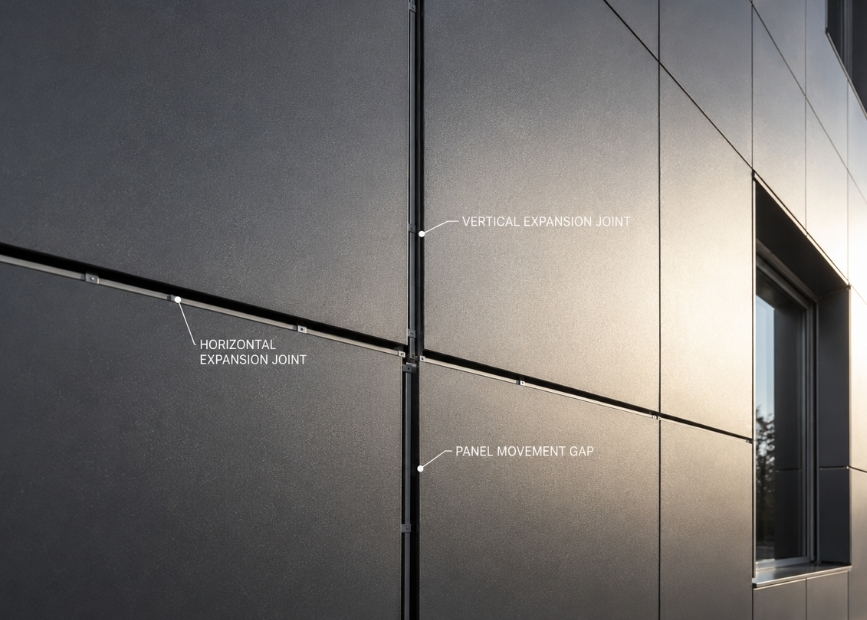

Façade movement joints are designed to absorb dimensional changes within the building envelope.
If joint widths are too narrow or expansion gaps are not properly maintained during installation, adjacent panels may push against one another during expansion cycles.
This can result in inconsistent joint widths, distorted panel edges, and visible façade irregularities.
Sealants must remain flexible to accommodate movement.
When thermal movement exceeds the designed capacity of the joint, sealant failure can occur. Cracked sealants not only affect appearance but may also compromise weather resistance around windows, corners, and façade transitions.
When panels are rigidly restrained, thermal forces are often transferred directly into rivets, screws, clips, and subframe components.
Over time, repeated movement cycles can contribute to enlarged fixing holes, stressed attachment systems, or localized panel buckling.
Modern ACM attachment systems are designed specifically to minimize these risks by allowing controlled movement at designated fixing points.
Not every project experiences the same level of thermal expansion.
Several variables influence thermal movement in aluminum composite panel facades.
Larger panels experience greater dimensional change than smaller panels.
As architectural trends continue toward large-format façade panels, expansion allowances become increasingly important.
Color has a significant impact on surface temperature.
Dark-colored ACM panels absorb more solar radiation than light-colored finishes. Black, charcoal gray, and dark metallic finishes often reach substantially higher temperatures than white or silver panels.
As a result, dark-colored aluminum façade panels typically experience greater thermal movement and may require additional attention during detailing.
South-facing and west-facing elevations generally receive greater solar exposure.
Different elevations of the same building may therefore experience different thermal movement conditions.
Projects located in deserts, cold climates, coastal environments, or regions with large day-to-night temperature swings often experience more demanding thermal movement requirements.
Designers should evaluate local environmental conditions rather than relying on generic assumptions.
Color selection is often viewed as an architectural decision, but it also influences façade performance.
Two identical aluminum composite panel facades may perform differently simply because of color choice.
Dark finishes absorb more solar energy, creating higher panel temperatures and greater thermal expansion. In some cases, panel surface temperatures may be dramatically higher than surrounding air temperatures.
For large commercial projects, transportation facilities, and high-rise buildings, dark-colored ACM panels should be evaluated carefully when determining expansion gaps, joint widths, and attachment methods.
This does not mean dark colors should be avoided. It simply means thermal movement must be considered as part of the overall façade engineering process.

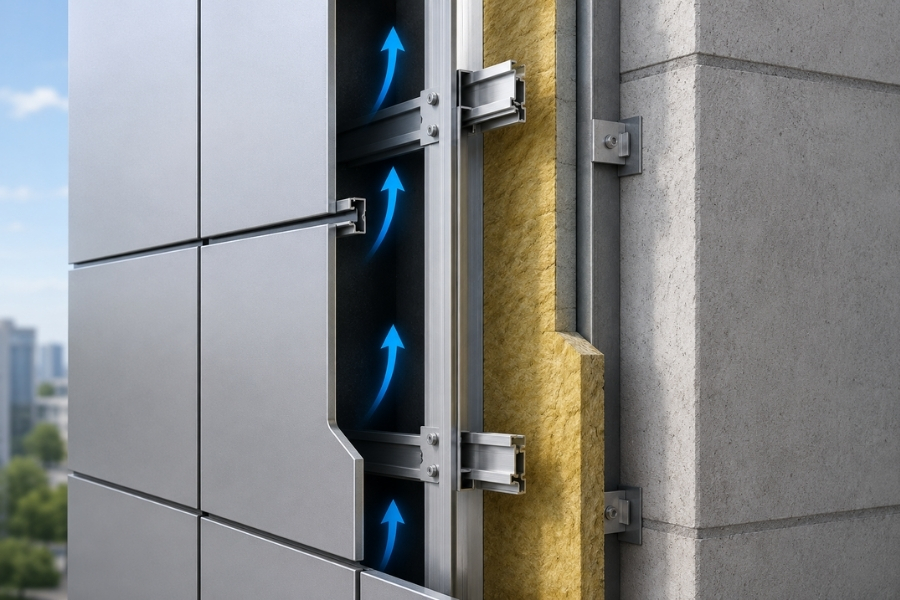

Many modern ACM facades are designed as rainscreen cladding systems.
A typical rainscreen assembly includes:
Exterior ACM panels
Ventilated cavity
Insulation layer
Supporting structure
Structural wall
The ventilated cavity behind the panels plays an important role in thermal performance.
Continuous airflow helps reduce heat buildup within the building envelope and minimizes moisture accumulation. Because temperatures within the assembly remain more stable, thermal stresses throughout the system can be reduced.
Rainscreen cladding systems also allow greater flexibility when accommodating thermal movement. The cavity, attachment systems, and façade movement joints work together to manage dimensional changes while maintaining weather resistance and long-term durability.
This is one reason rainscreen systems have become the preferred solution for many contemporary architectural cladding projects.
Thermal expansion is only one source of movement within a building.
Large structures also experience:
Structural deflection
Settlement movement
Wind-induced movement
Building expansion and contraction
For this reason, ACM façade systems must coordinate with building expansion joints rather than functioning independently.
A façade movement joint may successfully accommodate panel expansion while still experiencing problems if structural movement is ignored.
This is particularly important for large commercial developments, transportation hubs, educational facilities, and high-rise buildings where multiple movement forces interact simultaneously.
Professional façade detailing should consider both panel-level thermal movement and building-level movement requirements.

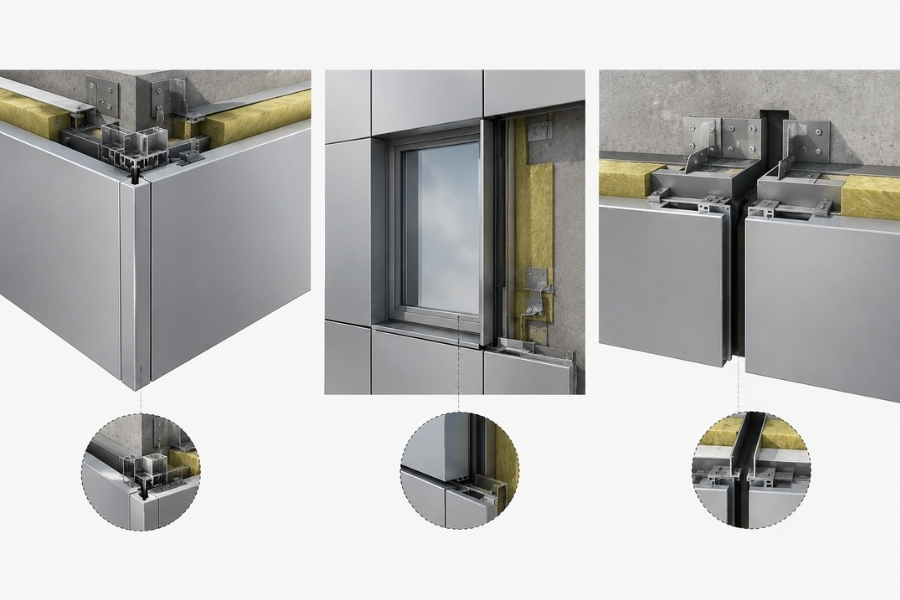

Connection details are often the difference between a successful façade and a problematic one.
Flat wall installations require adequate expansion gaps between adjacent panels. Corner conditions must accommodate movement in multiple directions. Curved façades introduce additional geometric stresses that interact with thermal expansion.
Window openings deserve special attention because thermal movement frequently concentrates around penetrations and perimeter conditions.
Experienced façade designers recognize that façade movement joints serve several functions simultaneously.
They provide:
Expansion allowance
Installation tolerance
Weather protection
Visual consistency
Long-term durability
Well-designed connection details allow panels to move naturally while preserving façade appearance and performance.
Many thermal movement issues originate during installation.
One common mistake is reducing expansion gaps to achieve tighter visual alignment. While the façade may initially appear cleaner, the lack of movement allowance often creates long-term performance issues.
Over-tightening screws and rivets is another frequent problem. Attachment points should allow controlled movement rather than rigidly locking panels in place.
Improper hole sizing can create similar challenges. Many ACM systems use oversized fixing holes specifically to accommodate thermal movement. If holes are undersized, the panel may be unable to expand and contract freely.
At Aluwell®, project discussions often include installation temperature, panel dimensions, attachment systems, and expected environmental conditions because these variables directly affect thermal movement behavior over the life of the façade.

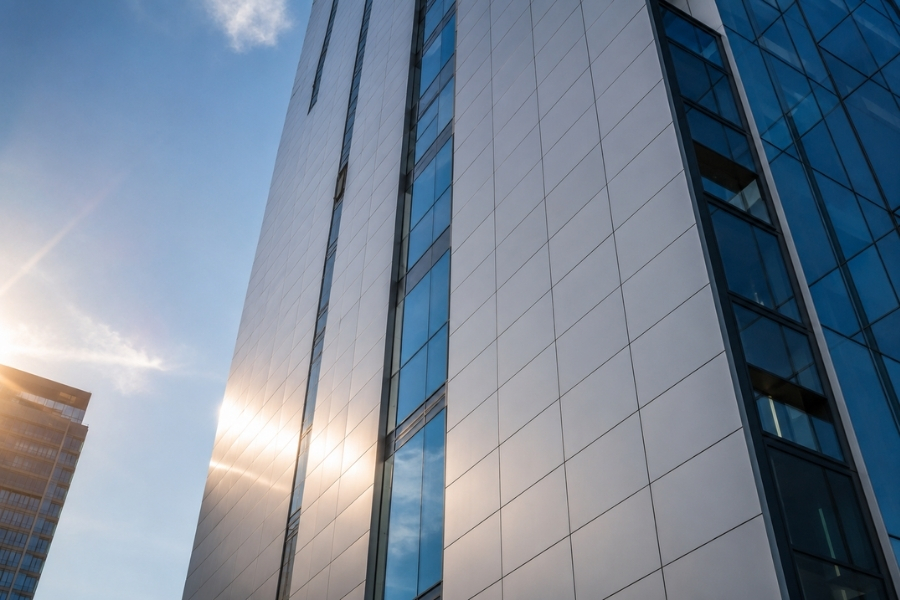

High-rise projects introduce additional considerations.
Tall buildings often experience greater wind exposure, larger façade areas, and more complex structural movement than low-rise developments.
Temperature variations may differ between lower and upper elevations. Dark-colored façade areas may experience different thermal conditions than shaded sections of the same building.
Large-format panels commonly used in high-rise curtain wall systems also generate greater thermal movement because of their dimensions.
As building heights increase, coordination between façade engineers, structural engineers, fabricators, and installers becomes increasingly important.
Thermal movement should be evaluated as part of the overall building envelope strategy rather than as an isolated panel issue.
Experienced ACM manufacturers contribute more than material supply.
They provide guidance regarding:
Panel dimensions
Expansion gap recommendations
Attachment systems
Fabrication methods
Façade movement joints
Project-specific detailing
At Aluwell®, thermal movement considerations are incorporated into project planning discussions to help architects, contractors, and façade consultants develop reliable ACM façade solutions for a wide range of climates and building types.
Thermal expansion is a normal and unavoidable characteristic of aluminum composite panel facades. The long-term success of an ACM project depends not on preventing movement but on accommodating it through proper engineering, detailing, fabrication, and installation.
By considering thermal movement, expansion gaps, façade movement joints, panel color, building orientation, and attachment systems during the design process, project teams can reduce maintenance risks and improve façade durability.
When integrated into a properly engineered rainscreen cladding system, aluminum composite panels can deliver reliable performance, visual consistency, and long-term value across a wide range of architectural applications.
Yes. All aluminum composite panels expand as temperatures increase and contract when temperatures decrease.
An expansion gap provides space for thermal movement and helps prevent stress buildup between adjacent panels.
Thermal expansion alone does not cause oil canning, but restricted movement can increase stresses that make surface irregularities more visible.
Yes. Dark colors absorb more heat and typically experience higher surface temperatures than lighter finishes.
Façade movement joints allow dimensional changes to occur without damaging panels, sealants, or attachment systems.
Yes. Ventilated rainscreen assemblies help moderate temperatures and improve the overall performance of architectural cladding systems.
