ALUWELL- ALUMINIUM HONEYCOMB APPLICATION

Honeycomb Panel is used for several of applications (i.e. for tool machines, for serigraphy..etc.) and in different sectors such as: public transport industry,nautical sector, building industry, etc...

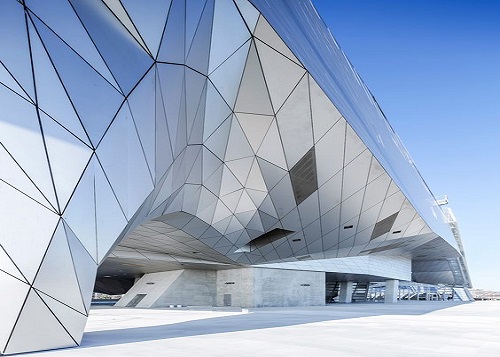

As core materials, aluminium honeycomb is used in sandwich panels and it is utilised in: floors, roofs, doors, partitions, facades, working surfaces for automatic machines, laser jet cutting and for all products which require an optimal stiffness-to-weight-ratio.


Aluwell Honeycomb Panel as panels’ core has several advantages:


lightweight

stiffness

good fire reaction

compression, shear and corrosion resistance

flatness

Aluminium honeycomb can be used as deflector for laminar flow-ventilation, and as crash-absorber for kinetic energy.

Thickness of non-expanded Blocks: 1000mm standard, the diameter of the cells from 3 to 25 mm. The density of the honeycomb depends on the thickness of the foil and the diameter of the cells.

Thickness of expanded section from 3mm to 60 / 200mm approx. (depending on the cell diameter).

Honeycomb density (from 20 to 163 kg/m3) depends on foil’s thickness and on cell size.


Aluwell Honeycomb core’s properties
50 Microns
Aluminium Alloy series 3000
3003/3005/3103/3104
Ø honeycomb in mm ca.
3,8
6
9
12
19
Ø honeycomb in inches
1/8"
1/4"
3/8"
1/2"
3/4"
Density kg/m3
112
56 - 59
39 - 40
29 - 30
20 - 21
Compressive stabilised
strength MPa
6,8
3,0 - 3,5
1,4 - 1,95
0,8 - 0,95
0,4 - 0,6

thickness’ tolerance mm

± 0,1  ( ± 0,05 on request )

dimension’s tolerance mm

± 30

maximum use temperature °C

180°



Alloy 3000/3003/3005/3103/3104 aluminium honeycomb is sold perforated or non perforated
(the micro perforations allowing air flow between cells, for use under vacuum or decompression)
in three forms: unexpanded block non perforated, unexpanded slices, expanded sheets.



FIRE REACTION
SECTORCLASSES AND CERTIFICATIONSMATERIALS





 SHIPBUILDING





 MED, IMO



0407



  MOD. B. Certification Nr.:



  MED- 147 (IG-293-2013) REV.2

  2017CS011592 REV.0



  MOD. D. Certification Nr.: MED- 154

  (IG-178-2014) REV.13





ALUMINIUM HONEYCOMB


 aluminium honeycomb complying with the

 MED directive for the application in ships

 registered or applied in the European Union.

 Item N. MED/3.13,

 IMO 2010 FTP Code, Annex 1







U.S. Coast Guard





   MOD. B. USCG N. approval Nr.:

   164.109/EC0407



   MOD. D. N. approval.: 164.109/EC0407/MED000154

   (for MED/3.13)





 ALUMINIUM HONEYCOMB



 BUILDING



UNI EN 13501-1





  A1 Classification, non-combustible Class



  Classification Nr. IN-01746/2017-OC-E







 ALUMINIUM HONEYCOMB



 A1 - Incombustible





BUILDING



NF P92-501-1995

NF EN ISO 1716



M0 Classification, non-combustible Class



  Classification RA21-0114



ALUMINIUM HONEYCOMB



 M0 - Incombustible
